大盤尺寸規格表 |
|||||||
| 軸品牌 | 軸型式 | 盤齒外徑 | 角齒桿外徑 | 磐齒螺絲數 | 角齒柱齒數 | 軸蓋螺絲數 | 磐齒螺絲規格 |
| DANA | Dana 28 | 6 5/8" | 1.313" | 10 | 23 | 12 | 3/8" x 24 |
| Dana 30 | 7.20" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 30 Reverse(反轉) | 7.20" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 30 TJ(short pinion) | 7.20" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 30 JK | 7.20" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 35 | 7 9/16" | 1.375" | 8 | 26 | 10 | 3/8" x 24 | |
| Dana 35 Reverse(IFS) | 7 9/16" | 1.375" | 8 | 26 | 10 | 3/8" x 24 | |
| Dana 36 | 7 9/16" | 1.375" | 10 | 26 | 12 | 3/8" x 24 | |
| Dana 44 | 8 1/2" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 44 JK | 8 1/2" | 1.625" | 10 | 29 | 10 | 1/2" | |
| Dana 44 Reverse | 8 1/2" | 1.375" | 10 | 26 | 10 | 3/8" x 24 | |
| Dana 44 V | 8 1/2" | 1.375" | 10 | 26 | 12 | 3/8" x 24 | |
| Dana 50 | 9" | 1.377" | 10 | 26 | 10 | 7/16" x 20 | |
| Dana 60 | 9 3/4" | 1.625" | 12 | 29 | 10 | 1/2" x 20 | |
| Dana 60 Reverse | 9 3/4" | 1.625" | 12 | 29 | 10 | 1/2" x 20 | |
| Dana 70 | 10.5" | 1.750" | 12 | 29 | 10 | 1/2" x 20 | |
| Dana 80 | 11.25" | 2.00" | 12 | 37 | 10 | 9/16" x 18 | |
| FORD | Ford 7 1/2" | 7 1/2" | 1.625" | 10 | 28 | 10 | 7/16" x 20 |
| Ford 8" | 8" | 1.187" | 10 | 25 | 10 | 7/16" x 20 | |
| Ford 8.8" | 8.8" | 1.625" | 10 | 30 | 10 | 7/16" x 20 | |
| Ford 8.8" Reverse(IFS) | 8.8" | 1.625" | 10 | 30 | 10 | 7/16" x 20 | |
| Ford 9" | 9" | 1.313" | 10 | 28 | 10 | 7/16" x 20 | |
| Ford 9" Big Pinion Pro Gear | 9" | 1.876" | 10 | 35 | 10 | 7/16" x 20 | |
| Ford 9" Small Pinion Pro Gear | 9" | 1.313" | 10 | 28 | 10 | 7/16" x 20 | |
| Ford 9.5" Big Pinion Pro Gear | 9.5" | 1.876" | 10 | 35 | 10 | 7/16" x
20 & 1/2" x 20 |
|
| Ford 9" Ultralite | 9" | 1.313 | 10 | 28 | 10 | 7/16"x20 | |
| Ford 9" Ultralite Pro Gear | 9" | 1.876" | 10 | 35 | 10 | 7/16"x20 | |
| Ford 9.5" Ultralite Pro Gear | 9.5" | 1.876" | 10 | 35 | 10 | 7/16" x
20 & 1/2" x 20 |
|
| Ford 9 3/4" | 9 3/4" | 1.972" | 12 | 31 | 12 | 12x1.25mm | |
| Ford 10 1/4" | 10 1/4" | 1.938" | 12 | 31 | 12 | 1/2" x 20 | |
| Ford 10.50" | 10 1/2" | 1.938" | 12 | 31 | 12 | 1/2" x 20 | |
| TOYOTA | Toyota 7 1/2" (190mm) | 7 1/2" | 1.378" | 10 | 23 | 10 | 11 x 1.00mm |
| Toyota 8" (200mm) | 8" | 1.378" | 10 | 27 | 10 | 11 x 1.00mm | |
| Toyota 8" V6 & Turbo (200mm) | 8" | 1.378" | 10 | 27 | 10 | 11 x 1.00mm | |
| Toyota 8" Landcruiser Reverse (200mm) | 8" | 1.378" | 10 | 27 | 10 | 11 x 1.00mm | |
| Toyota 9 1/2" Landcruiser (240mm) | 9 1/2" | 1.575" | 12 | 27 | 10 | 12 x 1.00mm | |
| Toyota 7 1/2" Tacoma Reverse (190mm) | 7 1/2" | 1.378" | 10 | 23 | 10 | 11 x 1.00mm | |
| Toyota 8" Tacoma Rear (210mm) | 8" | 1.575" | 12 | 30 | 10 | 12 x 1.00mm | |
| SUZUKI | Suzuki Samurai | 6.9" | 1.379" | 10 | 26 | 10 | 10 x 1.25mm |
| AMC | AMC Model 20 | 8 7/8" | 1.625" | 8 | 28 | 12 | 7/16" x 20 |
| CHRYSLER | Chrysler 7 1/4" | 7.25" | 1.375" | 8 | 25 | 10 | 3/8" x 24 |
| Chrysler 8 3/8" (8 1/4") | 8 3/8" | 1.625" | 10 | 27 | 10 | 3/8" x 24 | |
| Chrysler 8 3/4" Straight Pinion "742" | 8 3/4" | 1.750 | 12 | 10 | 10 | 3/8" x 24 | |
| Chrysler 8 3/4" Tapered Pinion "489" | 8 3/4" | 1.875" | 12 | 29 | 10 | 3/8" x 24 | |
| Chrysler 9 1/4" | 9 1/4" | 1.875 | 12 | 29 | 12 | 7/16" x 20 | |
| GM | GM 7 1/4" IFS | 7 1/4" | 1.157" | 10 | 27 | 10 | 10 x 1.25mm |
| GM 7 1/2" (7 5/8") | 7.5" | 1.438" | 10 | 27 | 10 | 7/16" x 20 | |
| GM 7 3/4" Borg Warner | 7 3/4" | 1.376" | 8 | 27 | 9 | 7/16" x 20 | |
| GM 8.2" Chevrolet | 8.2" | 1.438" | 10 | 25 | 10 | 3/8" x 24 | |
| GM 8 1/4" IFS | 8 1/4" | 1.625" | 10 | 30 | 10 | 7/16" x 20 | |
| GM 8 1/2" | 8 1/2" | 1.625" | 10 | 30 | 10 | 7/16" x 20 | |
| GM 8 7/8" Car | 8 7/8" | 1.625" | 12 | 30 | 12 | 3/8" x 24 | |
| GM 8 7/8" Truck | 8 7/8" | 1.438" | 12 | 30 | 12 | 3/8" x 24 | |
| GM 9 1/4" | 9 1/4" | 1.876" | 12 | 30 | 12 | 12 x 1.50mm | |
| GM 9 1/2" | 9 1/2" | 1.876" | 12 | 30 | 14 | 12 x 1.50mm | |
| GM 10 1/2" | 10 1/2" | 1.750" | 12 | 30 | 14 | 1/2" x 20 | |
| GM 11 1/2" | 11 1/2" | 2" | 12 | 31 | 14 | 14 x 1.5mm | |
|

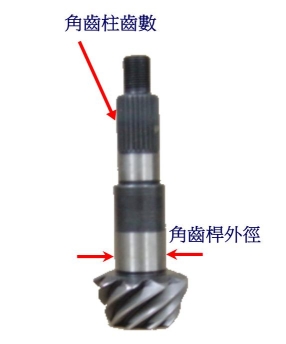

大盤尺寸標示法 |
||
 |
 |
 |
